Pacific

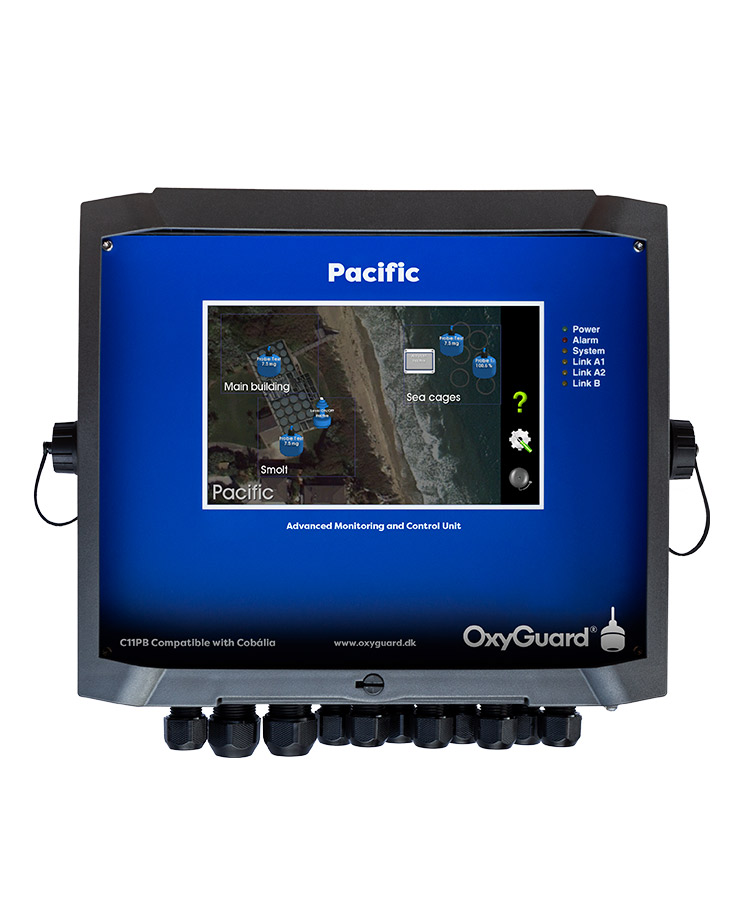

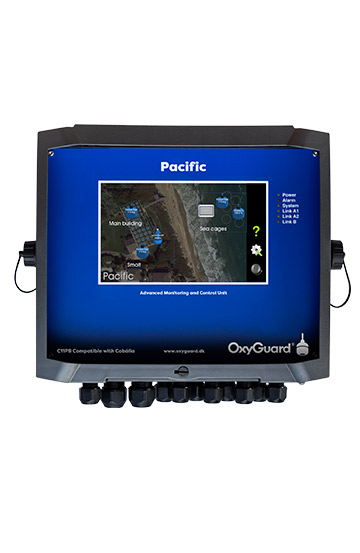

Pacific is a measuring, monitoring and control system designed for use in fish farms. It is both multi-channel and multi-parameter, and forms a modular small size complete system. A member of the Commander series of equipment, it can be used both as a stand-alone system or as a part of a larger Commander Pacific system.

Up to 20 probes: wired, wireless
Combination of relays and digital inputs/outputs (up tp 30 of each)
P-NET, API – Interface, TCP/Modbus, TCP/IP, USB
Built-in data logger
Touch-screen

DOWNLOAD BROCHURE

Other components for more functionality

Digital probes: DO optical, Salinity, TGP, O3
Analogue probes: DO, PH, Redox (ORP), CO2 , Temp

Pacific Main / Pacific Combi

4 analogue probes
2 (0) digital probes*
6 on/off inputs and/or outputs
6 output relays

Pacific Main XD / Pacific Combi XD

3 analogue probes
4 (2)digital probes*
6 on/off inputs and/or outputs
6 output relays

Pacific Main AI / Pacific Combi AI

2 analogue probes
2 (0)digital probes*
5 on/off inputs and/or outputs
5 output relays
4 mA I/O

* Note that when a Pacific Main Unit is combined with one or more extension boxes, fewer or no digital probes can be connected.

Pacific I/O

2 digital probes
8 on/off (inputs, outputs or a combination)

Pacific Probe

8 analogue probes
2 digital probes

Pacific Analogue (4-20 mA)

8 mA inputs/outputs for active and passive devices such as sensors, flow meters, etc., or control of valves, pumps, etc.

Pacific Probe Unit XD

14 digital probes
